Replacement plates
Replacement plate heat exchanger plates
Plates matched to your unit’s make, model and plate pattern — for replacing cracked, corroded or damaged plates, or adding capacity.
Overview
When plates need replacing
Plates are the heat-transfer surface of the exchanger. Over time they can crack from fatigue or pressure spikes, corrode, or be damaged during handling. A cracked plate lets the two media mix, so it must be replaced rather than returned to service.
Replacement plates are also used to add capacity to a frame that has room for more, or to change plate material when a process changes. Our standard supply is high-quality compatible parts that match or exceed the original OEM specification — the practical, cost-effective choice for most repairs. Genuine OEM parts are available on request.
When to replace
When replacement plates are needed
Cracked or pinholed plates
Found during crack testing at a workshop service.
Corrosion damage
Plates attacked by chlorides, acids or other aggressive media.
Mechanical damage
Bent or deformed plates from handling or over-tightening.
Adding capacity
Extra plates for frames with room to expand.
Material change
A different plate material for a new medium.
Spares holding
Critical plates held as spares for planned shutdowns.
Materials & configurations
Materials and configurations

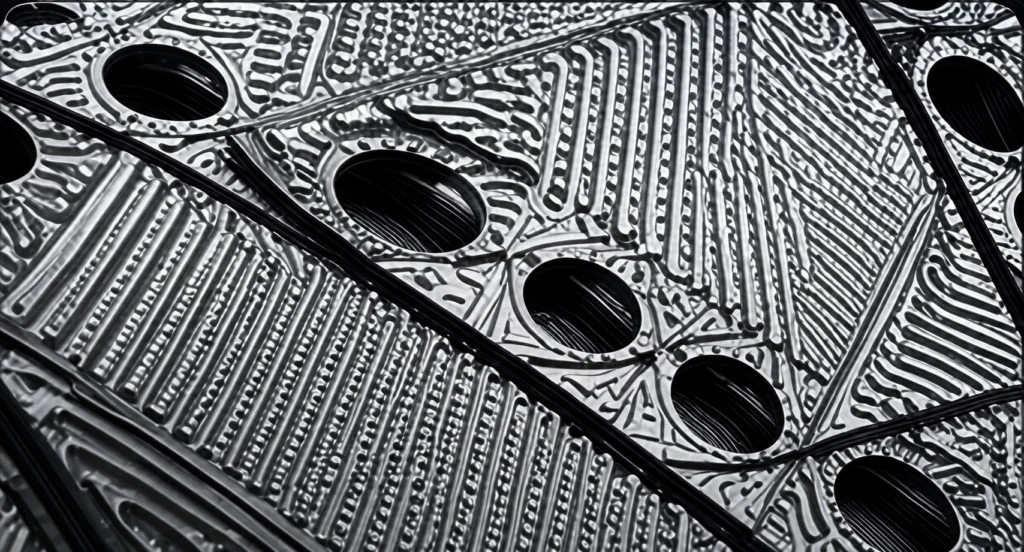

Plates in materials including stainless steel and titanium, matched to your unit’s make, model and plate pattern.
Plate thickness, pattern (chevron angle), port arrangement and the end plates of the pack all need to match the existing pack. We confirm these before supply.
Identification
What we need to identify the right part
- Manufacturer and model
- Serial number from the nameplate
- Number of plates in the pack
- Plate dimensions and port positions, if the nameplate is missing
- Plate and gasket material, if known
- Photos of the nameplate, the unit and a plate
Compatibility
Compatibility and correct selection
A plate that doesn’t match the pattern, porting or gasket groove of the rest of the pack won’t seal or perform correctly. That is why we ask for the nameplate and, where possible, a photo of a plate.
Every plate is inspected by the Brantec team for quality and consistency before supply. Stocked parts are held locally.
FAQ
Common questions
Are your plates OEM?
Our standard supply is high-quality compatible parts that match or exceed the original OEM specification — the practical, cost-effective choice for most repairs. Genuine OEM parts are available on request.
Which brands do you supply plates for?
Many common makes and models. Send us the nameplate details and we’ll confirm what’s available for your unit.
Can I replace just one or two plates?
Yes, if the rest of the pack is in good condition. We’ll check the plate position and type so the replacement fits the pack correctly.
Do you supply plates with gaskets fitted?
Tell us what you need when you request a quote and we’ll confirm the options.
Related
Related services and products
Replacement gaskets
NBR, EPDM and Viton gaskets selected for your media and temperature.
Plate packs & kits
Complete plate packs when a full rebuild is the better option.
Workshop servicing
Full strip-down, clean, crack test, re-gasket and rebuild at our Granville workshop.
Get in touch
Need a quote?
Send the nameplate details or a photo and we’ll confirm what suits your unit.
